Spring Data One To One Mapping

One to One defines as one entity is related to a single instance of another entity.

Example of One to One
1. a user is related to a single address(home address).
2. a post has a post details table
3. a stock has a stock details table
4. an employee has a single computer

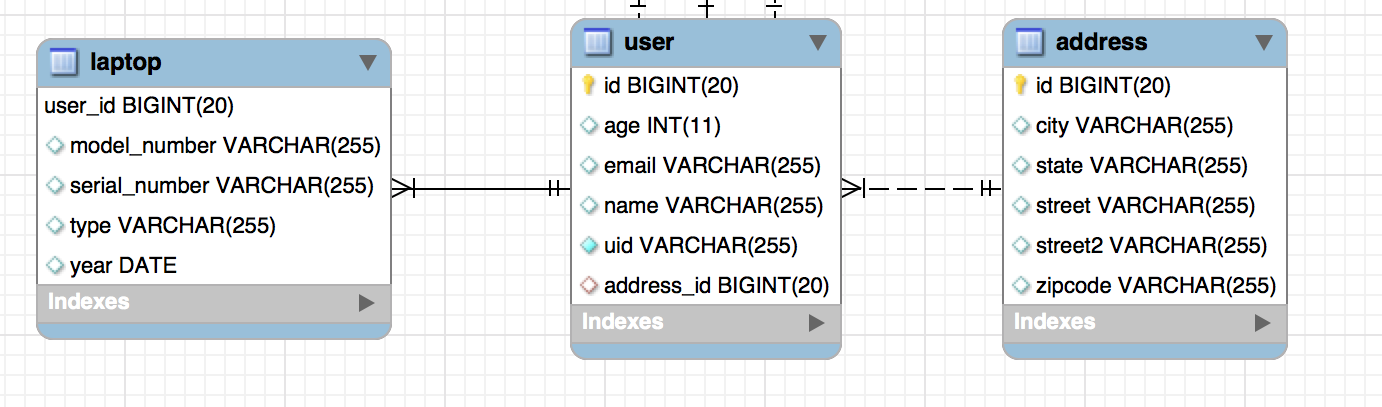

Let’s suppose we have to build a user management system. We are asked to create a user table, an address table, and a laptop table.

Unidirectional Relationship
In a unidirectional relationship, only one entity has a relationship field or property that refers to the other entity.
The user will have a one to one relationship with a home address. This relationship is a unidirectional since the User class will reference the Address class but the Address class does not have a reference to the User class.

Plain text
Copy to clipboard
Open code in new window
EnlighterJS 3 Syntax Highlighter
package com.lovemesomecoding.user;
import java.io.Serializable;
import javax.persistence.CascadeType;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.OneToOne;
import javax.persistence.Table;
import org.apache.commons.lang3.builder.EqualsBuilder;
import org.apache.commons.lang3.builder.HashCodeBuilder;
import org.apache.commons.lang3.builder.ToStringBuilder;
import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;
import com.lovemesomecoding.address.Address;
@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "user")
public class User implements Serializable {
private static final long serialVersionUID = 1L;
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
@Column(name = "id", nullable = false, updatable = false, unique = true)
private Long id;
@Column(name = "uid", unique = true, nullable=false, updatable=false)
private String uid;
@Column(name = "name")
private String name;
@Column(name = "email")
private String email;
@Column(name = "age")
private int age;
@JsonIgnoreProperties(value= {"address"})
@OneToOne(fetch=FetchType.LAZY, cascade=CascadeType.ALL)
@JoinColumn(name="address_id", updatable = false, nullable=false, unique=true)
private Address address;
public User() {
super();
// TODO Auto-generated constructor stub
}
// setters and getters
}
package com.lovemesomecoding.user; import java.io.Serializable; import javax.persistence.CascadeType; import javax.persistence.Column; import javax.persistence.Entity; import javax.persistence.FetchType; import javax.persistence.GeneratedValue; import javax.persistence.GenerationType; import javax.persistence.Id; import javax.persistence.JoinColumn; import javax.persistence.OneToOne; import javax.persistence.Table; import org.apache.commons.lang3.builder.EqualsBuilder; import org.apache.commons.lang3.builder.HashCodeBuilder; import org.apache.commons.lang3.builder.ToStringBuilder; import com.fasterxml.jackson.annotation.JsonIgnoreProperties; import com.fasterxml.jackson.annotation.JsonInclude; import com.fasterxml.jackson.annotation.JsonInclude.Include; import com.lovemesomecoding.address.Address; @JsonInclude(value = Include.NON_NULL) @Entity @Table(name = "user") public class User implements Serializable { private static final long serialVersionUID = 1L; @Id @GeneratedValue(strategy = GenerationType.IDENTITY) @Column(name = "id", nullable = false, updatable = false, unique = true) private Long id; @Column(name = "uid", unique = true, nullable=false, updatable=false) private String uid; @Column(name = "name") private String name; @Column(name = "email") private String email; @Column(name = "age") private int age; @JsonIgnoreProperties(value= {"address"}) @OneToOne(fetch=FetchType.LAZY, cascade=CascadeType.ALL) @JoinColumn(name="address_id", updatable = false, nullable=false, unique=true) private Address address; public User() { super(); // TODO Auto-generated constructor stub } // setters and getters }
package com.lovemesomecoding.user;

import java.io.Serializable;

import javax.persistence.CascadeType;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.OneToOne;
import javax.persistence.Table;

import org.apache.commons.lang3.builder.EqualsBuilder;
import org.apache.commons.lang3.builder.HashCodeBuilder;
import org.apache.commons.lang3.builder.ToStringBuilder;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;
import com.lovemesomecoding.address.Address;

@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "user")
public class User implements Serializable {

	private static final long serialVersionUID = 1L;

	@Id
	@GeneratedValue(strategy = GenerationType.IDENTITY)
	@Column(name = "id", nullable = false, updatable = false, unique = true)
	private Long id;

	@Column(name = "uid", unique = true, nullable=false, updatable=false)
	private String uid;

	@Column(name = "name")
	private String name;

	@Column(name = "email")
	private String email;

	@Column(name = "age")
	private int age;

	@JsonIgnoreProperties(value= {"address"})
	@OneToOne(fetch=FetchType.LAZY, cascade=CascadeType.ALL)
	@JoinColumn(name="address_id", updatable = false, nullable=false, unique=true)
	private Address address;

	public User() {
		super();
		// TODO Auto-generated constructor stub
	}

	// setters and getters
}
Plain text
Copy to clipboard
Open code in new window
EnlighterJS 3 Syntax Highlighter
package com.lovemesomecoding.address;
import java.io.Serializable;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;
@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "address")
public class Address implements Serializable {
private static final long serialVersionUID = 1L;
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
@Column(name = "id", nullable = false, updatable = false, unique = true)
private Long id;
@Column(name = "street")
private String street;
@Column(name = "street2")
private String street2;
@Column(name = "city")
private String city;
@Column(name = "state")
private String state;
@Column(name = "zipcode")
private String zip;
public Address() {
super();
// TODO Auto-generated constructor stub
}
// setters and getters
}
package com.lovemesomecoding.address; import java.io.Serializable; import javax.persistence.Column; import javax.persistence.Entity; import javax.persistence.GeneratedValue; import javax.persistence.GenerationType; import javax.persistence.Id; import javax.persistence.Table; import com.fasterxml.jackson.annotation.JsonInclude; import com.fasterxml.jackson.annotation.JsonInclude.Include; @JsonInclude(value = Include.NON_NULL) @Entity @Table(name = "address") public class Address implements Serializable { private static final long serialVersionUID = 1L; @Id @GeneratedValue(strategy = GenerationType.IDENTITY) @Column(name = "id", nullable = false, updatable = false, unique = true) private Long id; @Column(name = "street") private String street; @Column(name = "street2") private String street2; @Column(name = "city") private String city; @Column(name = "state") private String state; @Column(name = "zipcode") private String zip; public Address() { super(); // TODO Auto-generated constructor stub } // setters and getters }
package com.lovemesomecoding.address;

import java.io.Serializable;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;

@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "address")
public class Address implements Serializable {

	private static final long serialVersionUID = 1L;

	@Id
	@GeneratedValue(strategy = GenerationType.IDENTITY)
	@Column(name = "id", nullable = false, updatable = false, unique = true)
	private Long id;

	@Column(name = "street")
	private String street;

	@Column(name = "street2")
	private String street2;

	@Column(name = "city")
	private String city;

	@Column(name = "state")
	private String state;

	@Column(name = "zipcode")
	private String zip;

	public Address() {
		super();
		// TODO Auto-generated constructor stub
	}

	// setters and getters

}

Bidirectional Relationship
In a bidirectional relationship, each entity has a relationship field or property that refers to the other entity. The User class has a reference to the Laptop class and vice versa.

Plain text
Copy to clipboard
Open code in new window
EnlighterJS 3 Syntax Highlighter
package com.lovemesomecoding.user;
import java.io.Serializable;
import javax.persistence.CascadeType;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.OneToOne;
import javax.persistence.Table;
import org.apache.commons.lang3.builder.EqualsBuilder;
import org.apache.commons.lang3.builder.HashCodeBuilder;
import org.apache.commons.lang3.builder.ToStringBuilder;
import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;
import com.lovemesomecoding.address.Address;
import com.lovemesomecoding.laptop.Laptop;
@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "user")
public class User implements Serializable {
private static final long serialVersionUID = 1L;
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
@Column(name = "id", nullable = false, updatable = false, unique = true)
private Long id;
@Column(name = "uid", unique = true, nullable=false, updatable=false)
private String uid;
@Column(name = "name")
private String name;
@Column(name = "email")
private String email;
@Column(name = "age")
private int age;
@JsonIgnoreProperties(value= {"user"})
@OneToOne(fetch=FetchType.LAZY, cascade=CascadeType.ALL, mappedBy="user")
private Laptop laptop;
public User() {
super();
// TODO Auto-generated constructor stub
}
// setters and getters
}
package com.lovemesomecoding.user; import java.io.Serializable; import javax.persistence.CascadeType; import javax.persistence.Column; import javax.persistence.Entity; import javax.persistence.FetchType; import javax.persistence.GeneratedValue; import javax.persistence.GenerationType; import javax.persistence.Id; import javax.persistence.JoinColumn; import javax.persistence.OneToOne; import javax.persistence.Table; import org.apache.commons.lang3.builder.EqualsBuilder; import org.apache.commons.lang3.builder.HashCodeBuilder; import org.apache.commons.lang3.builder.ToStringBuilder; import com.fasterxml.jackson.annotation.JsonIgnoreProperties; import com.fasterxml.jackson.annotation.JsonInclude; import com.fasterxml.jackson.annotation.JsonInclude.Include; import com.lovemesomecoding.address.Address; import com.lovemesomecoding.laptop.Laptop; @JsonInclude(value = Include.NON_NULL) @Entity @Table(name = "user") public class User implements Serializable { private static final long serialVersionUID = 1L; @Id @GeneratedValue(strategy = GenerationType.IDENTITY) @Column(name = "id", nullable = false, updatable = false, unique = true) private Long id; @Column(name = "uid", unique = true, nullable=false, updatable=false) private String uid; @Column(name = "name") private String name; @Column(name = "email") private String email; @Column(name = "age") private int age; @JsonIgnoreProperties(value= {"user"}) @OneToOne(fetch=FetchType.LAZY, cascade=CascadeType.ALL, mappedBy="user") private Laptop laptop; public User() { super(); // TODO Auto-generated constructor stub } // setters and getters }
package com.lovemesomecoding.user;

import java.io.Serializable;

import javax.persistence.CascadeType;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.OneToOne;
import javax.persistence.Table;

import org.apache.commons.lang3.builder.EqualsBuilder;
import org.apache.commons.lang3.builder.HashCodeBuilder;
import org.apache.commons.lang3.builder.ToStringBuilder;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;
import com.lovemesomecoding.address.Address;
import com.lovemesomecoding.laptop.Laptop;

@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "user")
public class User implements Serializable {

	private static final long serialVersionUID = 1L;

	@Id
	@GeneratedValue(strategy = GenerationType.IDENTITY)
	@Column(name = "id", nullable = false, updatable = false, unique = true)
	private Long id;

	@Column(name = "uid", unique = true, nullable=false, updatable=false)
	private String uid;

	@Column(name = "name")
	private String name;

	@Column(name = "email")
	private String email;

	@Column(name = "age")
	private int age;

	@JsonIgnoreProperties(value= {"user"})
	@OneToOne(fetch=FetchType.LAZY, cascade=CascadeType.ALL, mappedBy="user")
	private Laptop laptop;

	public User() {
		super();
		// TODO Auto-generated constructor stub
	}

	// setters and getters
}

Note here that I used the @MapsId annotation so that the Laptop class will use the User class id value as its primary key value. This is the most efficient way of mapping a one to one relationship.

Plain text
Copy to clipboard
Open code in new window
EnlighterJS 3 Syntax Highlighter
package com.lovemesomecoding.laptop;
import java.io.Serializable;
import java.time.LocalDate;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.MapsId;
import javax.persistence.OneToOne;
import javax.persistence.Table;
import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;
import com.lovemesomecoding.user.User;
@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "laptop")
public class Laptop implements Serializable {
private static final long serialVersionUID = 1L;
@Id
@Column(name = "id", nullable = false, updatable = false, unique = true)
private Long id;
@Column(name = "type")
private String type;
@Column(name = "serial_number")
private String serialNumber;
@Column(name = "model_number")
private String modelNumber;
@Column(name = "year")
private LocalDate year;
@JsonIgnoreProperties(value= {"laptop"})
@OneToOne
@JoinColumn(name="user_id")
@MapsId
private User user;
public Laptop() {
super();
// TODO Auto-generated constructor stub
}
// setters and getters
}
package com.lovemesomecoding.laptop; import java.io.Serializable; import java.time.LocalDate; import javax.persistence.Column; import javax.persistence.Entity; import javax.persistence.GeneratedValue; import javax.persistence.GenerationType; import javax.persistence.Id; import javax.persistence.JoinColumn; import javax.persistence.MapsId; import javax.persistence.OneToOne; import javax.persistence.Table; import com.fasterxml.jackson.annotation.JsonIgnoreProperties; import com.fasterxml.jackson.annotation.JsonInclude; import com.fasterxml.jackson.annotation.JsonInclude.Include; import com.lovemesomecoding.user.User; @JsonInclude(value = Include.NON_NULL) @Entity @Table(name = "laptop") public class Laptop implements Serializable { private static final long serialVersionUID = 1L; @Id @Column(name = "id", nullable = false, updatable = false, unique = true) private Long id; @Column(name = "type") private String type; @Column(name = "serial_number") private String serialNumber; @Column(name = "model_number") private String modelNumber; @Column(name = "year") private LocalDate year; @JsonIgnoreProperties(value= {"laptop"}) @OneToOne @JoinColumn(name="user_id") @MapsId private User user; public Laptop() { super(); // TODO Auto-generated constructor stub } // setters and getters }
package com.lovemesomecoding.laptop;

import java.io.Serializable;
import java.time.LocalDate;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.MapsId;
import javax.persistence.OneToOne;
import javax.persistence.Table;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonInclude.Include;
import com.lovemesomecoding.user.User;

@JsonInclude(value = Include.NON_NULL)
@Entity
@Table(name = "laptop")
public class Laptop implements Serializable {

	private static final long serialVersionUID = 1L;

	@Id
	@Column(name = "id", nullable = false, updatable = false, unique = true)
	private Long id;

	@Column(name = "type")
	private String type;

	@Column(name = "serial_number")
	private String serialNumber;

	@Column(name = "model_number")
	private String modelNumber;

	@Column(name = "year")
	private LocalDate year;

	@JsonIgnoreProperties(value= {"laptop"})
	@OneToOne
	@JoinColumn(name="user_id")
	@MapsId
	private User user;

	public Laptop() {
		super();
		// TODO Auto-generated constructor stub
	}

	// setters and getters
}

Check out the source code in Github




Subscribe To Our Newsletter
You will receive our latest post and tutorial.
Thank you for subscribing!

required
required


Leave a Reply

Your email address will not be published. Required fields are marked *
